Description

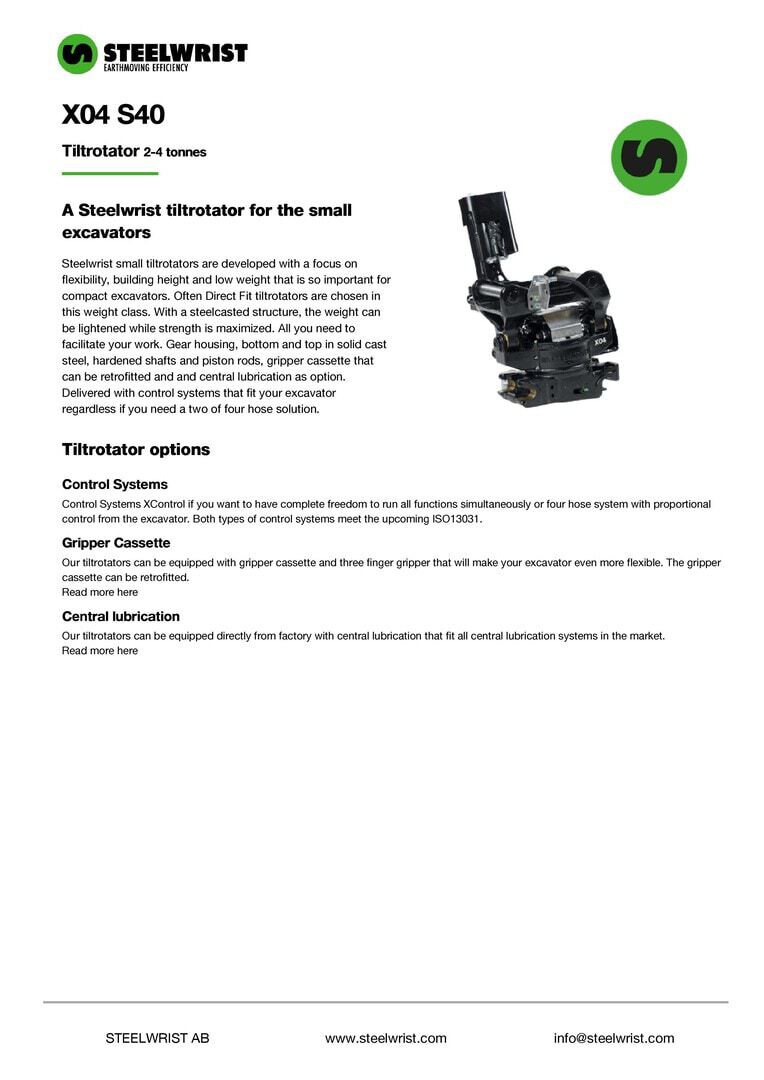

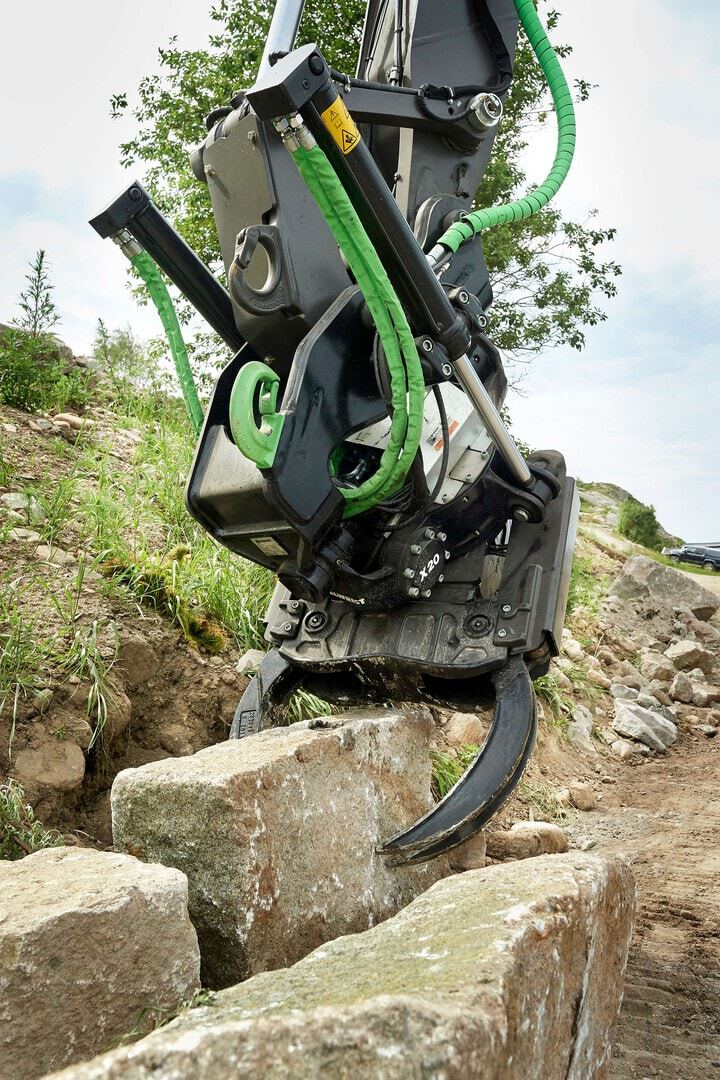

The Steelwrist X04 is a compact, high-precision tiltrotator designed for excavators in the 2–4 ton class. It delivers ±45° tilt and 360° rotation, allowing operators to dig, grade, trench, and shape with exceptional accuracy. The X04 is built with Steelwrist’s hallmark low-build-height design, optimized weight, and cast-steel structure for durability and smooth motion.
Key Features
- For excavators 2–4 ton
- 360° rotation
- ±45° tilt angle
- Sandwich construction for fast attachment changes
- S40 quick-coupler system
- Hydraulic open/close
- Robust cast-steel tilt housing
- Low build height for improved breakout force
- Expander pins for long service life
- Smooth proportional operation with modern hydraulic systems
- Compatible with Steelwrist or OEM control systems

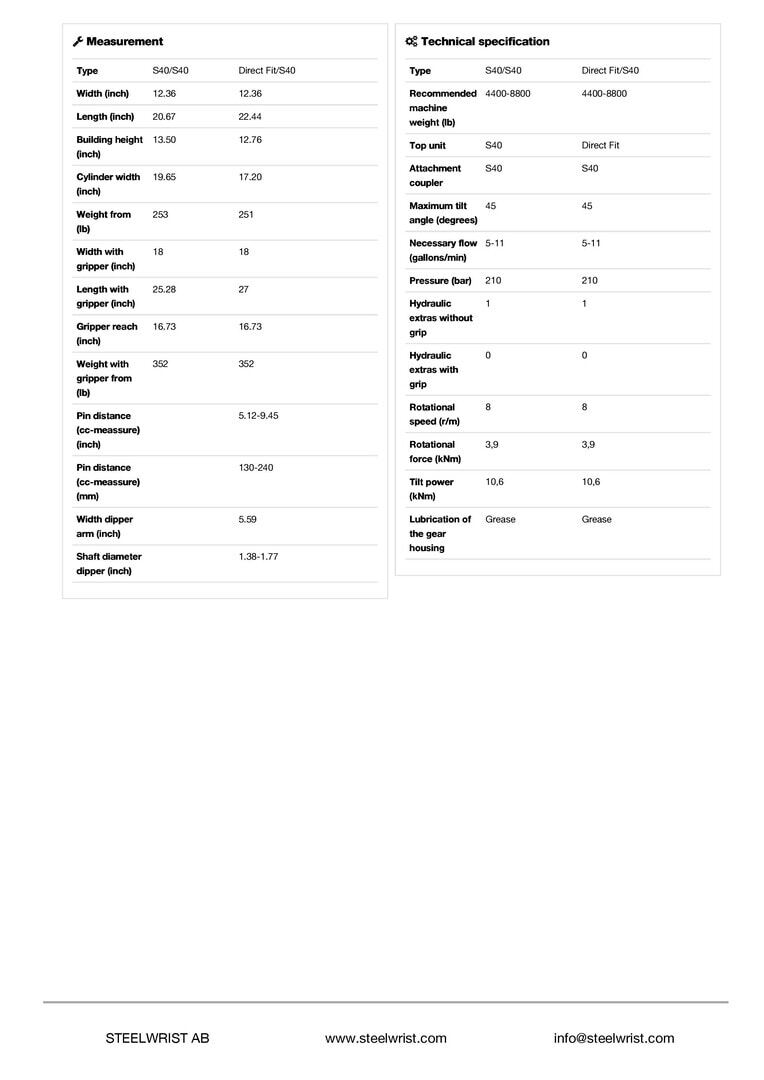

Technical Specifications
| Item | Value |
|---|---|
| Excavator weight | 2–4 t |
| Tilt angle | ±45° |
| Rotation | 360° |
| Coupler system | S40 |
| Construction | Cast-steel, sandwich style |
| Hydraulic open/close | Yes |
| Weight | ~130–150 kg depending on coupler |
| Recommended hydraulic flow | ~20–40 L/min |
| Max pressure | ~21–22 MPa |
| Width (approx.) | ~460 mm |
| Maximum bucket width | ~1000 mm |
What’s Included
- Steelwrist X04 tiltrotator
- Sandwich construction
- S40 quick coupler
- Hydraulic open/close
- Hose kit (basic)
- User manual
Optional upgrades:
- SQ40 automatic quick-coupler
- Joystick-based control systems
- Integrated gripper
- Additional hydraulic circuits
Condition & Warranty
- Brand-new
- Factory inspected
- Year: 2021
- Warranty: 3 years
Delivered within 7–10 business days across E.U, U.K and Ireland.
