Engcon EC02B Tiltrotator with Bucket Package for 1.5–3t Excavators (New)

Description

Model: Engcon EC02B Tiltrotator with Bucket Package
Year: 2025 (new stock)
Type: Tiltrotator attachment for 1.5–3 t excavators
Manufacturer: Engcon
Serial number: Available on request
Compatible machine weight: 1.5-3 tons

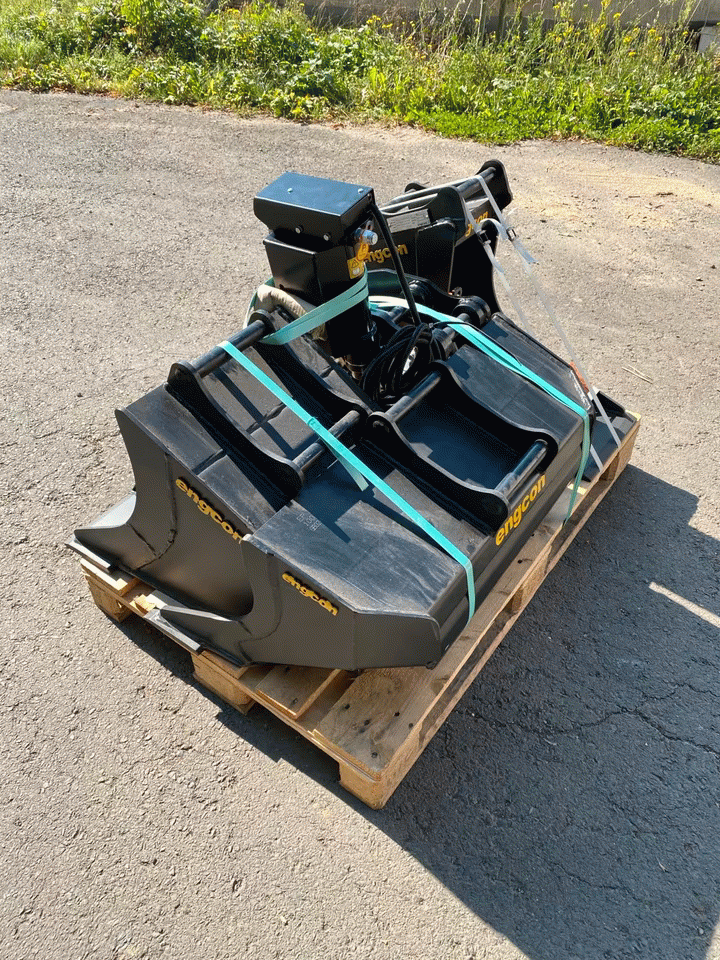

Included Equipment

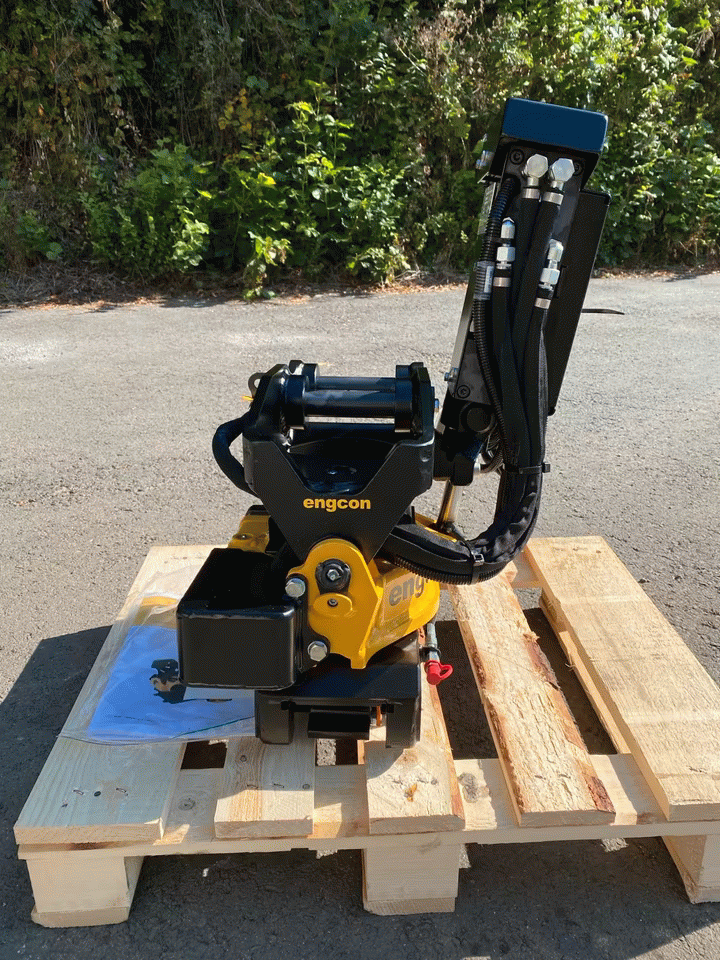

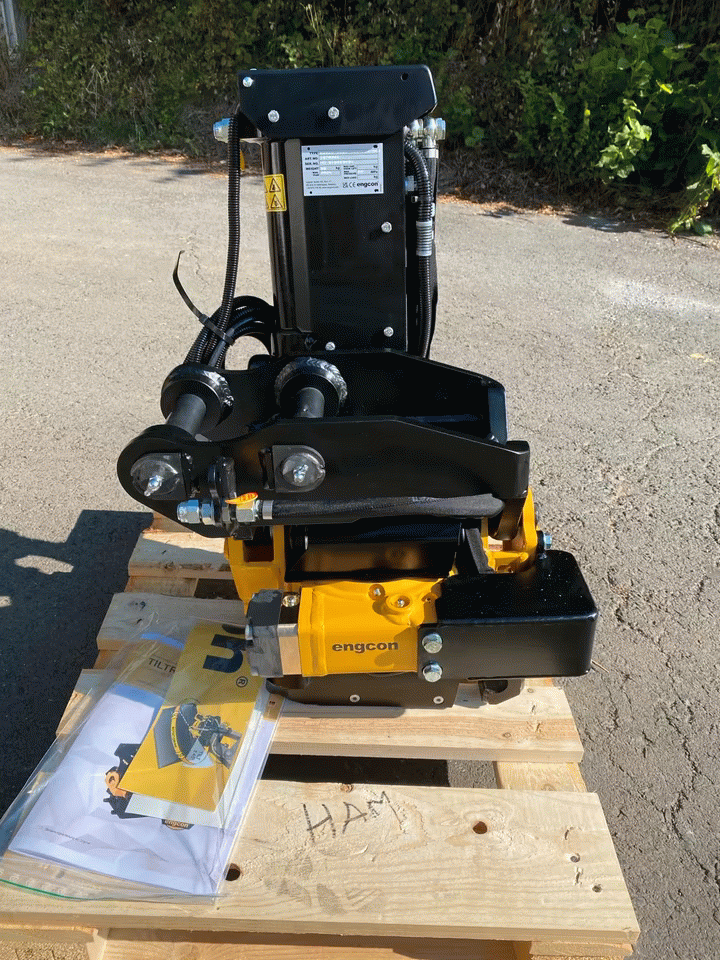

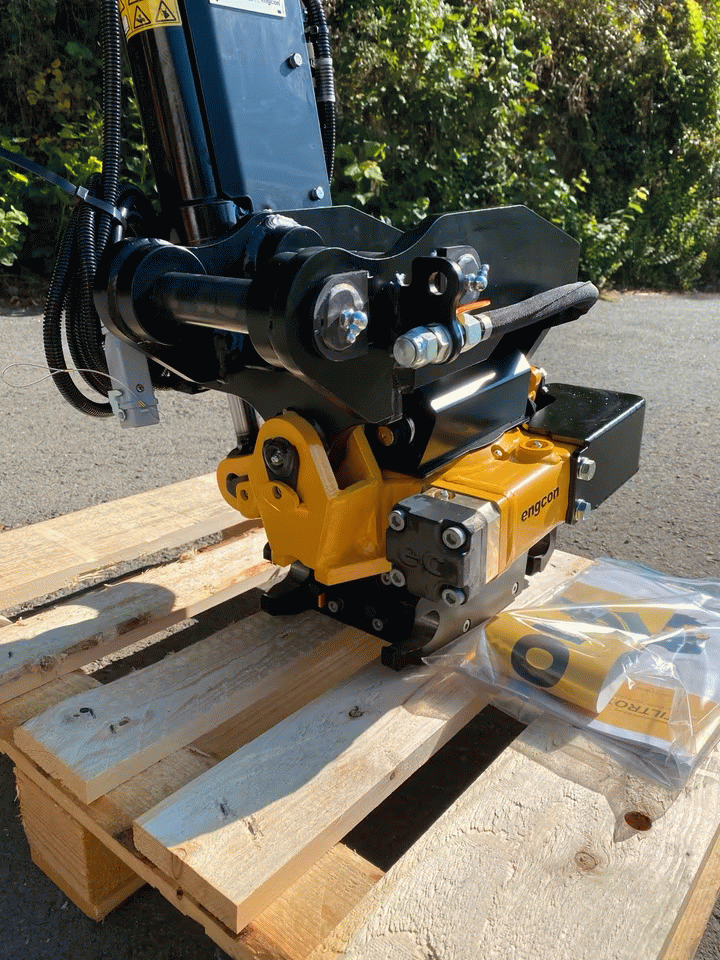

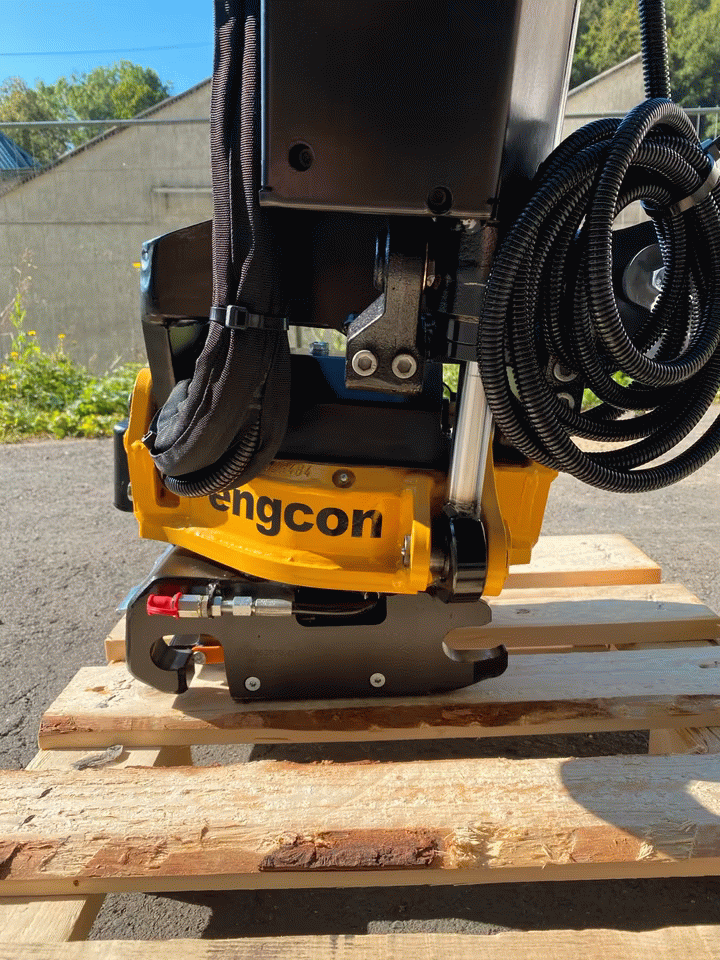

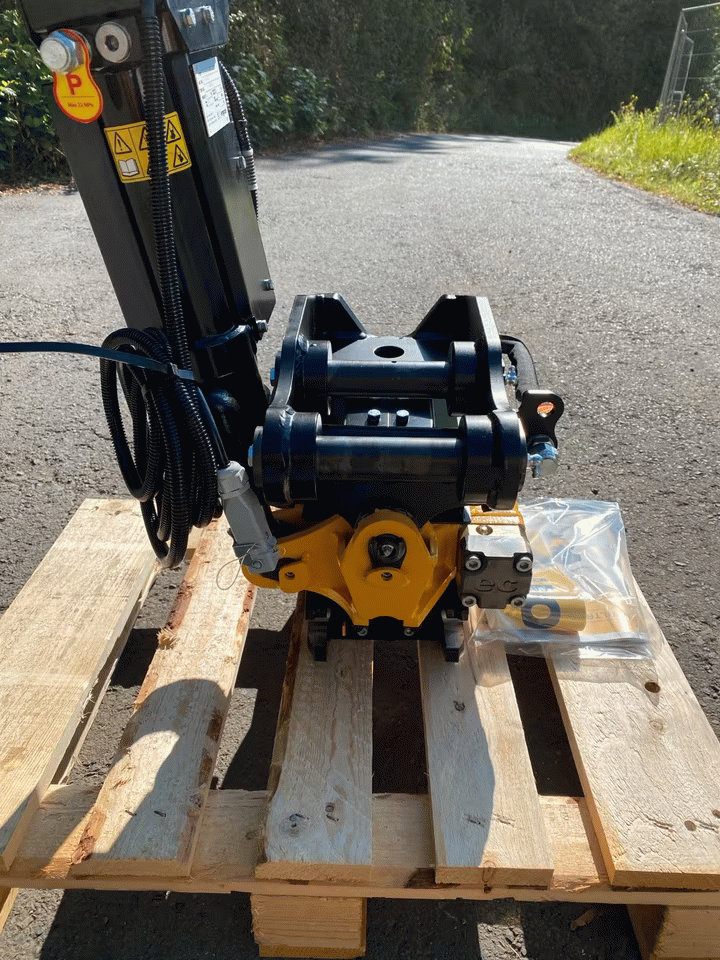

• Engcon EC02B tiltrotator and mechanical quick coupler (S30)

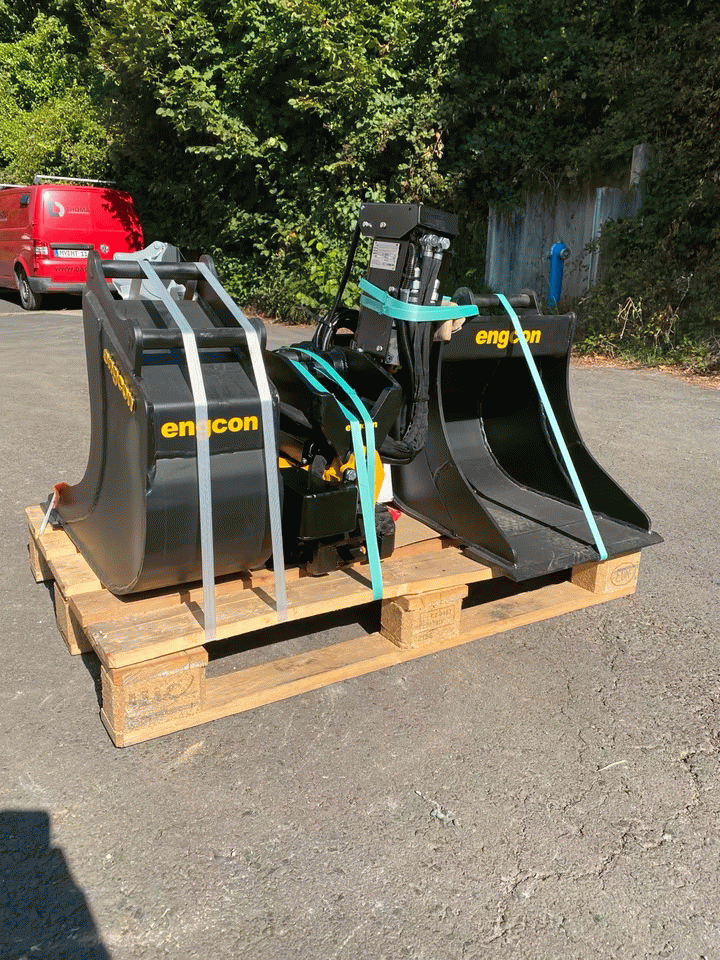

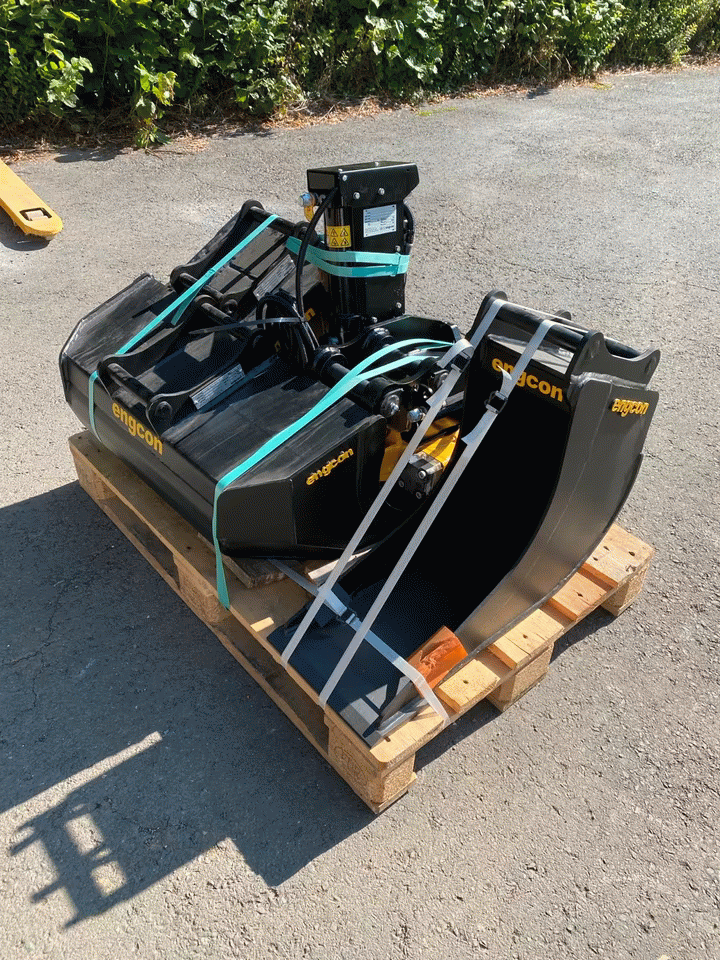

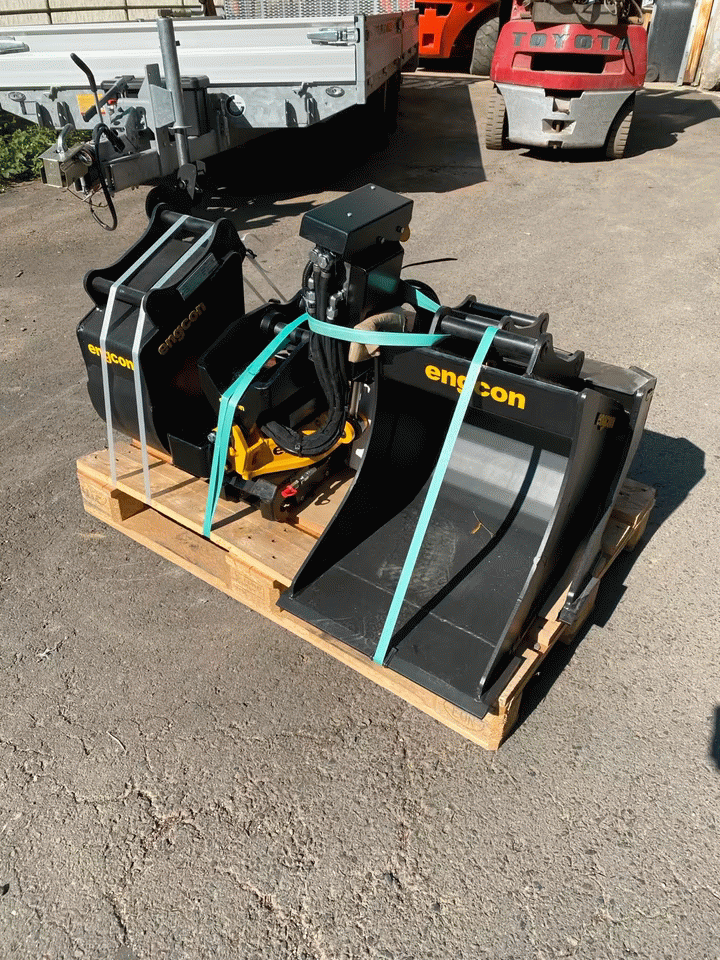

• 3-bucket set: 900 mm grading (~90 L), 450 mm digging, 240 mm cable bucket

• Bucket package includes required fittings and mounting hardware

• Control mounting bracket for excavator hose connections

Engine / Power Interface

Not powered — operates via excavator’s hydraulic system

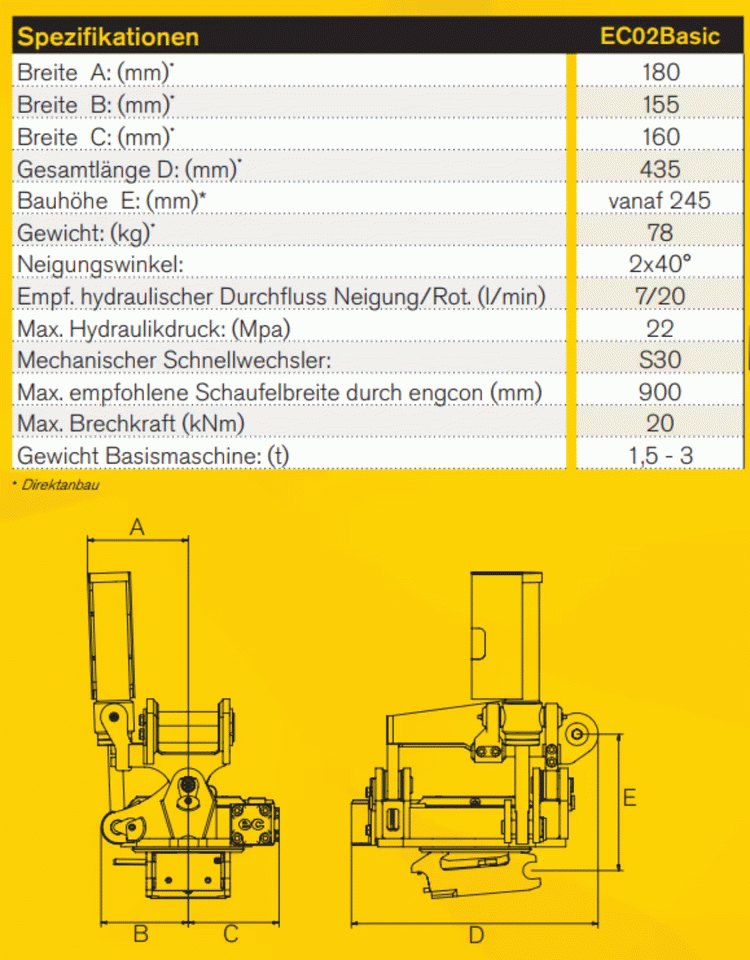

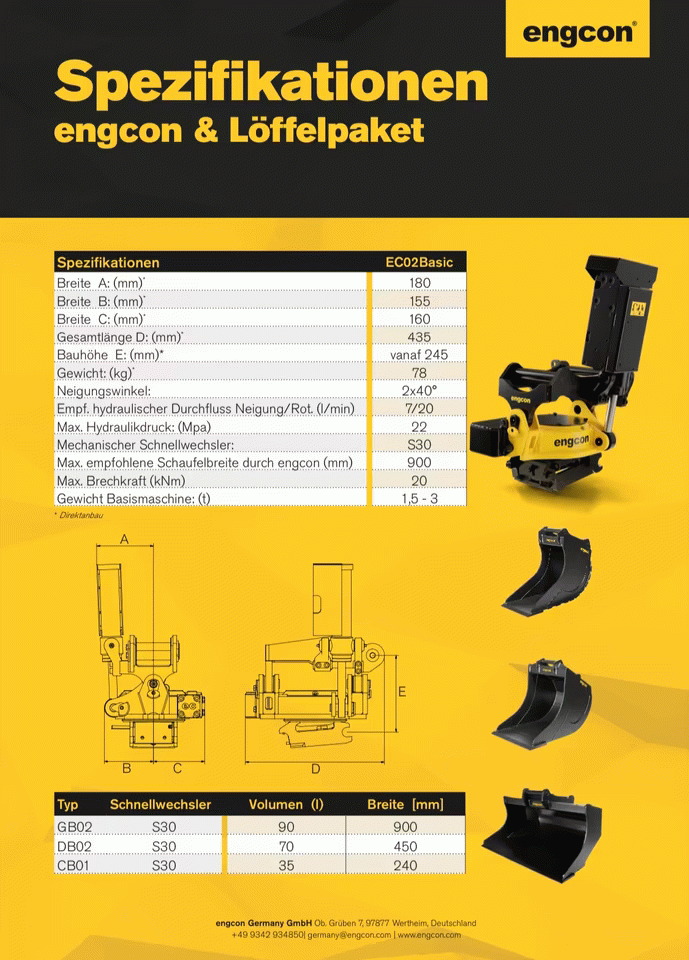

Technical & Dimensions

Tilt angle: ±40° · Rotation: 360°
Weight: 78 kg · Hydraulic flow: 7/20 L/min (tilt/rotate) · Max hydraulic pressure: 22 MPa
Max bucket width: 900 mm · Breakout force approx. 20 kNm

Warranty & Delivery

• 60 months warranty (local dealer / mechanic network)

• 14-day return option if not satisfied

• Delivery in 7-10 business days across France, Netherlands, Belgium, Germany

• 5% discount on accessories when bought with this unit
